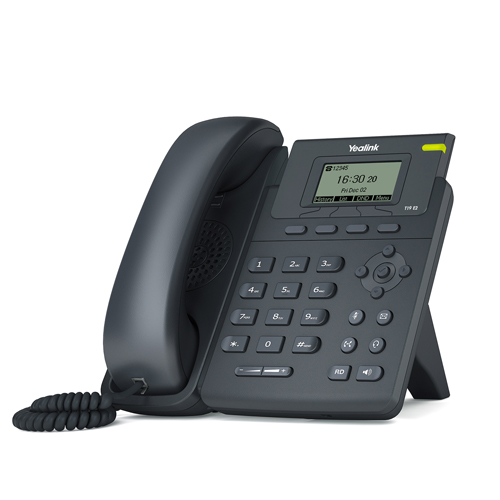

Entry-level IP Phone with 1 Line
The SIP-T19P E2 is one of Yealink’s latest answers for the entry-level IP phone that offers features and performance normally associated with much more advanced phones. The quite intentional choice of high-quality materials, combined with a generously large 132x64-pixel graphical LCD that gives a clear 5-line display,guarantees both a smoother user experience and easy access to much more visual information at a glance. Dual 10/100 Mbps network ports with integrated PoE are ideal for extended network use. The SIP-T19P E2 supports single VoIP account, simple, flexible and secure installation options, plus IPv6 and SRTP/HTTPS/ TLS, VLAN and QoS. It includes headset use, wall-mountable and has been designed very specifically for better business.
132x64-pixel graphical LCD
• Two-port 10/100 Ethernet Switch
• Up to 1 SIP account
• Headset support
• Wall mountable
• Simple, flexible and secure provisioning options
Specification
Audio Features
• Codec: G.722, G.711(A/μ), G.729AB, G.726, iLBC
• DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC
Phone Features
• 1 VoIP account
• Call hold, mute, DND
• One-touch speed dial, hotline
• Call forward, call waiting, call transfer
• Group listening, SMS
• Redial, call return, auto answer
• Local 3-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan
• XML Browser, action URL/URI
• Integrated Screenshots
• RTCP-XR
Directory
• Loal phonebook up to 1000 entries
• Black list
• XML remote phonebook
• Intelligent search method
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded
IP-PBX Features
• Anonymous call, anonymous call rejection
• Hot-desking, emergency call
• Message Waiting Indicator (MWI)
• Voice mail, call park, call pickup
• Intercom, paging, music on hold
• Call completion
Display and Indicator
• 132x64-pixel graphical LCD
• LED for call and message waiting indication
• Intuitive user interface with icons and soft keys
• National language selection
• Caller ID with name, number
Feature keys
• 6 features keys: message, headset, redial, tran, mute, hands-free speakerphone
• 5 navigation keys
• Volume control keys
Interface
• 2xRJ45 10/100M Ethernet ports
• 1xRJ9 (4P4C) handset port
• 1xRJ9 (4P4C) headset port
Other Physical Features
• Wall mountable
• External universal AC adapter (optional): AC 100~240V input and DC 5V/600mA output
• Power consumption (PSU): 0.9-1.25W
• Power consumption (PoE): 1.2-2.5W
• Dimension(W*D*H*T): 185mm*188mm*143mm*38mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C
Package Features
• Qty/CTN: 10 PCS
• N.W/CTN: 9.6kg
• G.W/CTN: 10.7kg
• Giftbox size: 215mm*200mm*121mm
• Carton Meas: 630mm*436mm*210mm
Management
• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• Zero-sp-touch,TR-069
• Reset to factory, reboot
• Package tracing export, system log
Network and Security
• SIP v1 (RFC2543), v2 (RFC3261)
• NAT transverse: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication using MD5/MD5-sess
• IEEE802.1X
• IPv6
